기술
The HS series Manual Stacker offers an excellent balance of performance, durability, and value. Engineered for reliability, it features a robust steel construction with reinforced forks, ensuring it can withstand demanding daily use.
Operation is made easy and efficient with a dual-lifting mechanism, including a foot pedal that considerably reduces operator effort. With various models offering capacities from 500kg to 1500kg and an optional adjustable fork, this stacker provides the versatility to handle different load sizes. It is the ideal, cost-effective choice for material handling tasks in workshops, warehouses, and retail environments.
Details
- HS Series is not only an excellent compromise between price and performance but also a very resistant machine.
- Reinforced forks, steel pulley and forks precisely driven by rollers, are some of the main features of this stacker.
- The machine is also equipped with a foot pedal to lift forks, which considerably reduces the operator's effort.
- Option: Adjustable fork (320-870mm)

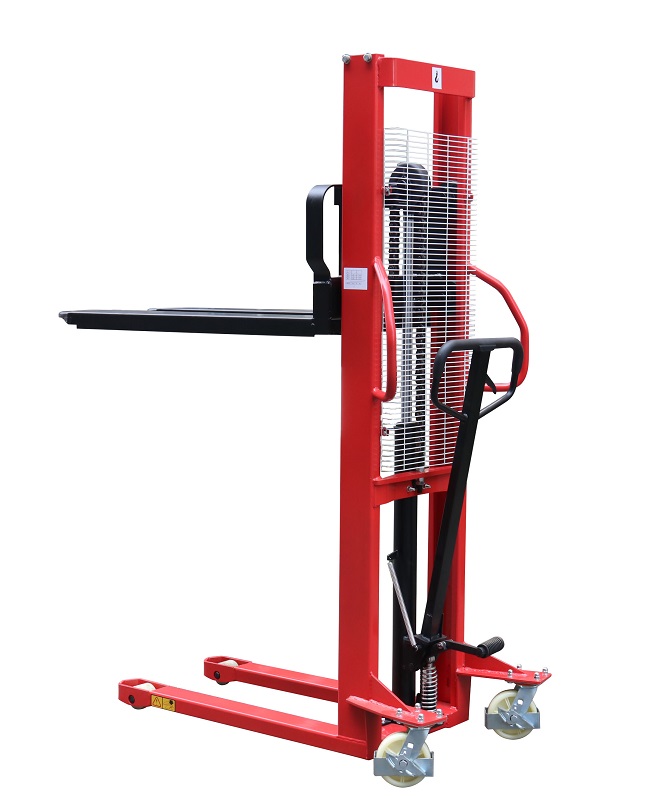

HS1525 HS1016
사양
| 아이 리프트 번호 | 1551801 | 1551802 | 1551803 | 1551804 | 1551805 | 1551806 | 1551807 | 1551808 | |
| 모델 | HS0510 | HS0516 | HS1016 | HS1018 | HS1025 | HS1030 | HS1516 | HS1525 | |
| 생산 능력 | kg (파운드) | 500(1100) | 1000(2200) | 1500(3300) | |||||
| 로드 센터 | mm (인치) | 600(23.6) | 600(23.6) | 600(23.6) | |||||
| 최대 포크 높이 | mm (인치) | 1000(40) | 1600(63) | 1600(63) | 1800(70.9) | 2500(98.4) | 3000(118.1) | 1600(63) | 2500(98.4) |
| 최소 포크 높이 | mm (인치) | 90(3.5) | 90(3.5) | 90(3.5) | |||||
| 포크 길이 | mm (인치) | 1150(45.3) | 1150(45.3) | 1150(45.3) | |||||
| 포크 폭 | mm (인치) | 100x48(4x1.9) | 160x55(6.3x2.2) | 160x55(6.3x2.2) | |||||
| Mast Width | mm (인치) | 430(17) | 480(19) | 600(23.6) | 490(19.3) | 600(23.6) | |||
| Overall Fork width | mm (인치) | 560(22) | 560(22) | 560(22) | |||||
| Min.Turing Radius | mm (인치) | 1540(60.6) | 1590(62.6) | 1590(62.6) | |||||
| 스티어링 휠 | mm (인치) | 150x50(3x2) | 150x50(3x2) | 150x50(3x2) | |||||
| 전면 로드 롤러 | mm (인치) | 80x36(3.1x1.4) | 80x60(3.1x2.4) | 80x60(3.1x2.4) | |||||
| Overall size LxWxH | mm (인치) | 1655x640x1380 | 1655x640x1970 | 1660x700x2005 | 1660x790x2210 | 1680x780x1760 | 1670x780x2020 | 1670x700x2085 | 1690x870x1760 |
| (65.2x25.2x54.3) | (65.2x25.2x77.6) | (65.4x27.6x79) | (65.4x31.1x87) | (66.1x30.7x69.3) | (65.7x30.7x79.5) | (65.7x27.6x82) | (66.5x34.3x69.3) | ||
| 순중량 | kg(1b.) | 126(277.2) | 140(308) | 173(380.6) | 182(400.4) | 259(569.8) | 278(611.6) | 182(400.4) | 288(633.6) |
